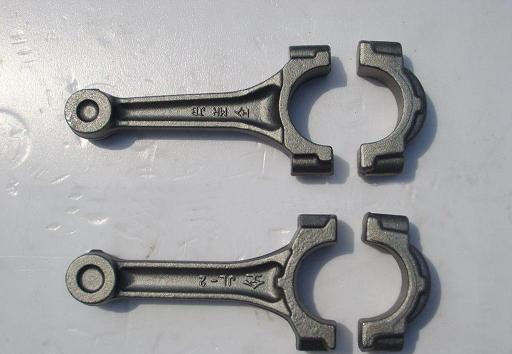

Connecting rod used in automotive is a major link inside of a combustion engine. It connects the piston to the crankshaft and transfer power from the piston to the crankshaft, then send it to the transmission. After finishing the design of a forged connecting rod, we could choose different materials and production ways. In most cases, connecting rod will be made in steel or aluminum. And we could consider investment casting process, drop forging process or powdered metallurgy. But according to its fuction, most purchasers will prefer drop forging process (see differences between drop forging and investment casting), and the do precision machining.
When connecting rod applied in vehicle engined, investment casting is available. This type of rod is made just by pouring the molten steel into a mold, and then do machining to achieve finished parts. It is reliable for lower horsepower-producing engines and is the cheapest way to manufacture. Casting connecting rod can be used in almost each type of engine, from gasoline to diesel. But due to the shortage of casting process, defects may be easily produced. By contrast, drop forging is better.
Connecting rod made by steel forging will greatly achieve high performance applications. This type of connecting rod is created by drop forging the heated metal bar into net shape, then just do less machining to finished product. Under drop forging process, it is able to withstand much greater loads and faster engine revolutions than a cast rod. We often call the forged rods as billet rods due to the process of machining them from a block of billet steel. This is a much more costly way to manufacture the rod and the reason that these are typically only used in high-horsepower applications.
Fly's connecting rod is 100% made in our company, we could make mold, forging, machining all in our factory, which will be more cost-effective and time saving. Pride in workmanship,and attention to detail are qualities you’ll discover during careful examination of our finished product. Each step of the manufacturing history of every Fly's connecting rod is meticulously maintained by our manufacturing team. You can be confident of the material and workmanship of these quality components.
